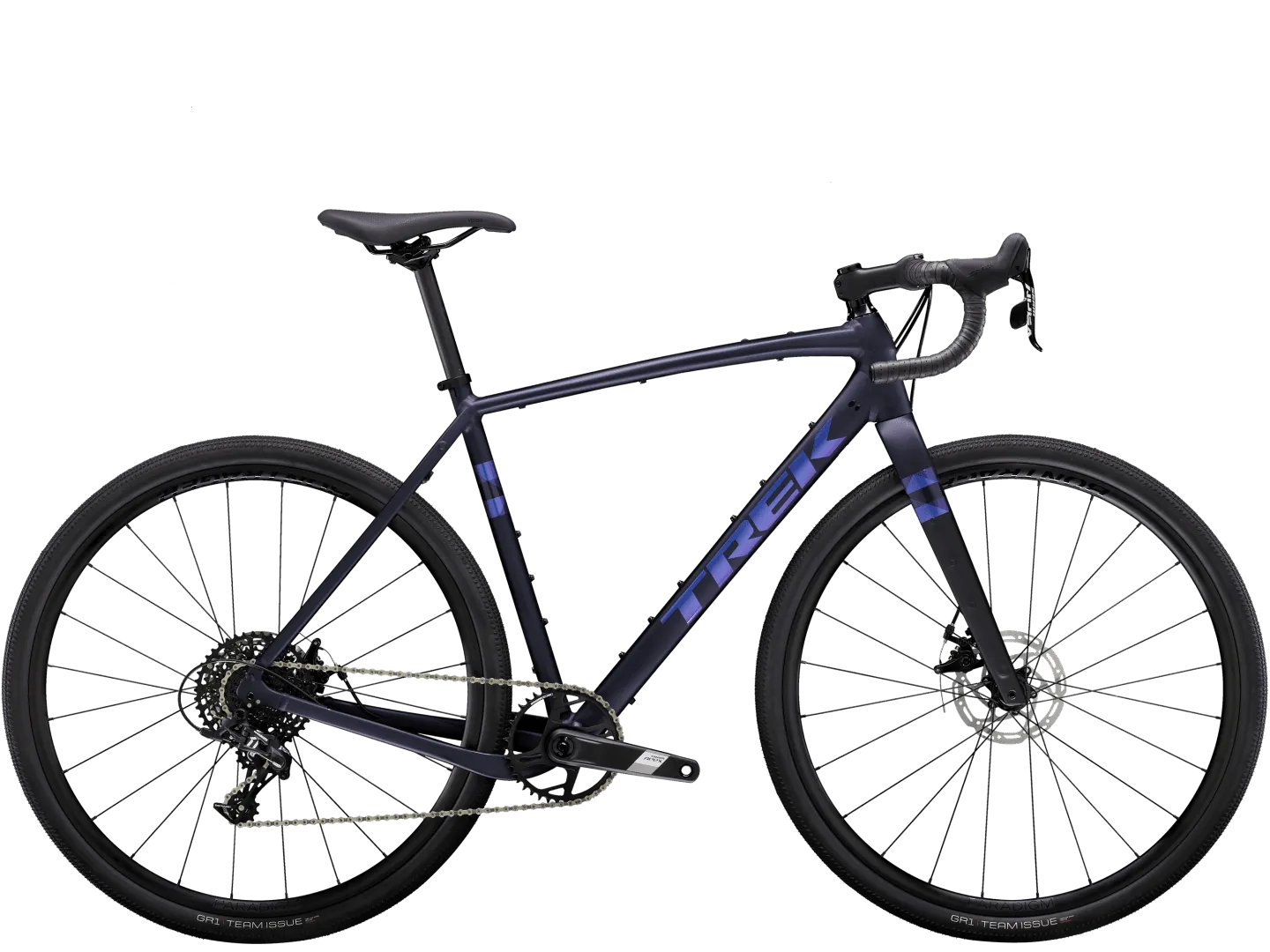

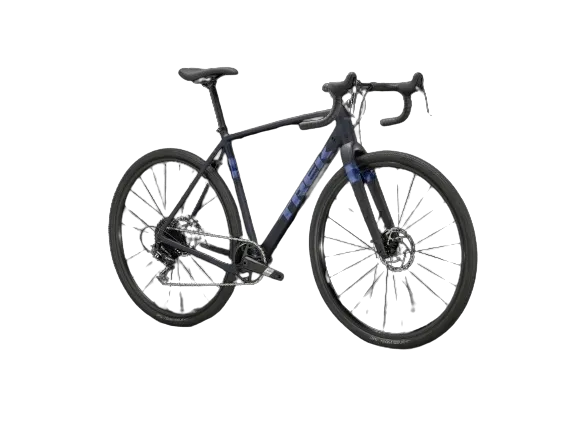

Checkpoint ALR 4 is the best value gravel bike in the lineup. Kitted out with a 300 Series Alpha Aluminum frame, Checkpoint ALR 4 is just as responsive on chunky gravel roads as it is smooth on the tarmac. Tons of features like tubeless ready wheels, a SRAM Apex 11 speed drivetrain, and mechanical disc brakes make Checkpoint ALR 4 the perfect ride for ease of entry into the wide world of gravel.

Features

• For quick, nimble handling that still keeps you stable and in control on rougher descents.
• Lots of clearance means you can run meatier tires (700x45mm or 27.5x2.1") for tackling chunkier gravel and terrain.
• Integrated frame bag and fender mounts make it easy to carry gear and water.

Specifications

• Intended Use- Gravel
• Wheel Size- 700c
• Braking System- Mechanical Disc
• Frame Material- Aluminium
• Fork Material- Carbon

Components

• Frame- 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
• Fork- Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
• Bottom Bracket- SRAM DUB, T47 threaded, internal bearing
• Chain- SRAM PC-1130, 11 speed
• Crank- Size: 52
  SRAM Apex 1, 40T, DUB Wide, 170mm length / Size: 54, 56
  SRAM Apex 1, 40T, DUB Wide, 172.5mm length / Size: 58
  SRAM Apex 1, 40T, DUB Wide, 175mm length
• Shift Levers- SRAM Apex, 11 speed
• Cassette- SRAM PG-1130, 11-42, 11 speed
• Rear Derailleur- SRAM Apex 1, long cage, 42T max cog
• Grips/Bartape- Bontrager Supertack Perf tape
• Handlebar- Size: 52
  Bontrager Elite Gravel, 40cm width / Size: 54, 56
  Bontrager Elite Gravel, 42cm width / Size: 58
  Bontrager Elite Gravel, 44cm width
• Stem- Size: 52, 54
  Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length / Size: 56, 58
  Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
• Saddle- Size: 52
  Bontrager Verse Comp, steel rails, 155mm width / Size: 54, 56, 58
  Bontrager Verse Comp, steel rails, 145mm width
• Seatpost- Bontrager alloy, 27.2mm, 12mm offset, 330mm length
• Front Brake- Tektro C550 mechanical disc brake, dual piston, flat mount
• Rear Brake- Tektro C550 mechanical disc brake, dual piston, flat mount
• Front Wheel- Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve, Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
• Rear Wheel- Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve, Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
• Tire- Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
• Pedal- NA
