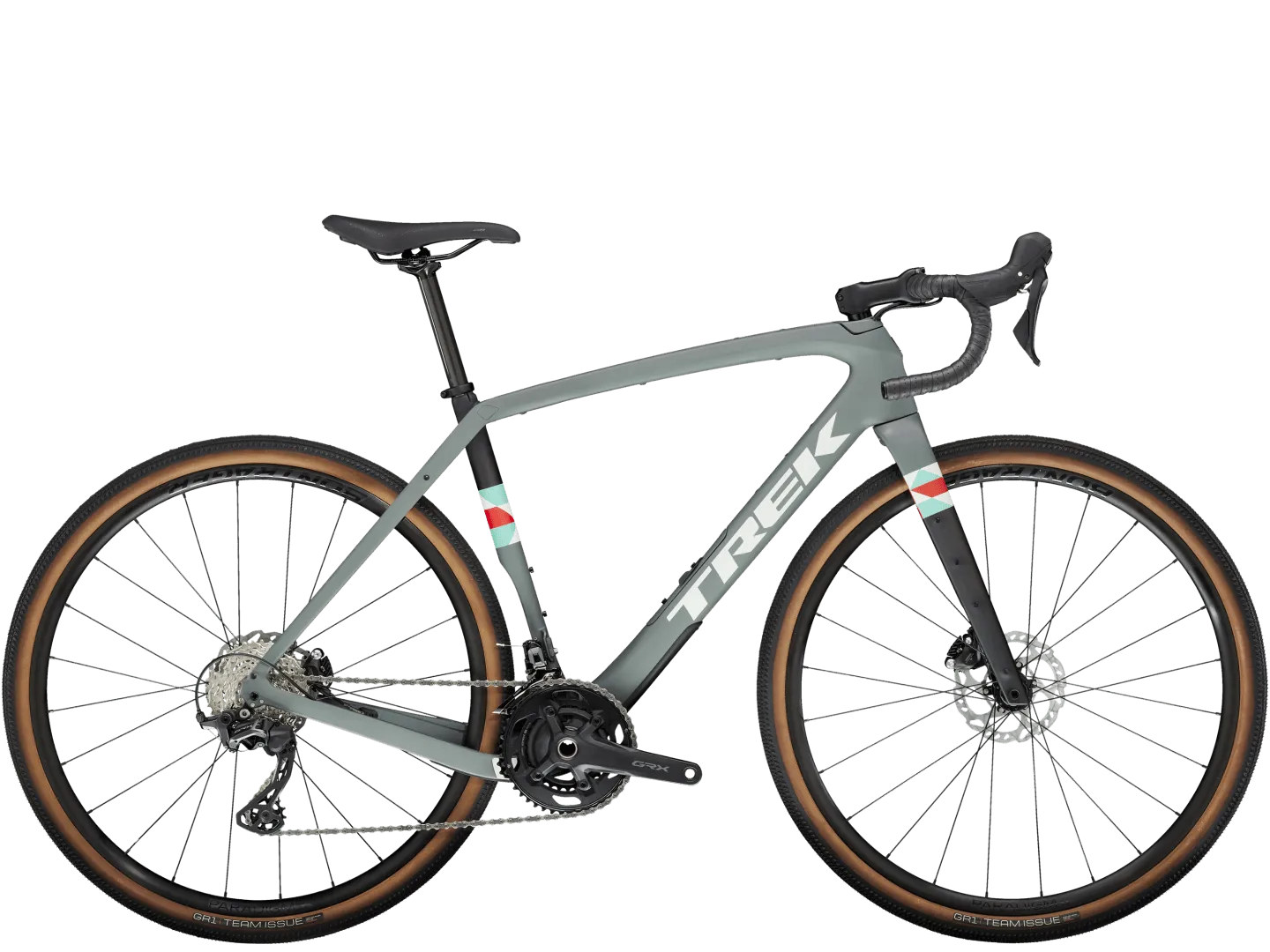

The Checkpoint SL 5 is a carbon gravel bike made for epic adventures. It's built with lightweight OCLV Carbon, a 2x12 Shimano GRX drivetrain, terrain-smoothing damped IsoSpeed, nimble yet stable progressive geometry, internal storage and loads of mounts. All of that adds up to a rad gravel bike capable of crushing the longest, roughest rides and the most ambitious bikepacking trips.

Features

• For quick, nimble handling that still keeps you stable and in control on rougher descents.
• Lots of clearance means you can run meatier tyres (700x45 mm or 27.5x2.1") for tackling chunkier gravel and terrain.
• Integrated frame bag and mudguard mounts make it easy to carry gear and water.
• A built-in storage compartment in the downtube lets you stow tools and gear.
• The damped, controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around.

Specifications

• Intended Use- Gravel
• Wheel Size- 700c
• Braking System- Hydraulic Disc
• Frame Material- Carbon
• Fork Material- Carbon

Components

• Frame- 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle
• Fork- Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
• Bottom Bracket- Praxis, T47 threaded, internal bearing
• Chain- Shimano SLX M7100, 12-speed
• Crank- Size: 49
  Shimano GRX RX610, 46/30, 165 mm length / Size: 52
  Shimano GRX RX610, 46/30, 170 mm length / Size: 54, 56
  Shimano GRX RX610, 46/30, 172.5 mm length / Size: 58
  Shimano GRX RX610, 46/30, 175 mm length
• Shift Levers- Shimano GRX RX610
• Cassette- Shimano 105 7100, 11-36, 12-speed
• Front Derailleur- Shimano GRX RX820, braze-on, down swing
• Rear Derailleur- Shimano GRX RX820, 36T max cog
• Grips/Bartape- Bontrager Supertack Perf tape
• Handlebar- Size: 49
  Bontrager Elite Gravel, 38 cm width / Size: 52
  Bontrager Elite Gravel, 40 cm width / Size: 54, 56
  Bontrager Elite Gravel, 42 cm width / Size: 58
  Bontrager Elite Gravel, 44 cm width
• Stem- Size: 49
  Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length / Size: 52, 54
  Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length / Size: 56, 58
  Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
• Saddle- Size: 49, 52:
  Bontrager Verse Comp, steel rails, 155 mm width / Size: 54, 56, 58: Bontrager Verse Comp, steel rails, 145 mm width
• Seatpost- Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
• Front Brake- Shimano RX410 hydraulic disc, flat mount
• Rear Brake- Shimano RX410 hydraulic disc, flat mount
• Front Wheel- Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12mm thru-axle
• Rear Wheel- Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 thru-axle
• Tire- Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c
• Weight(Apprx)- 56 - 9.65 kg
