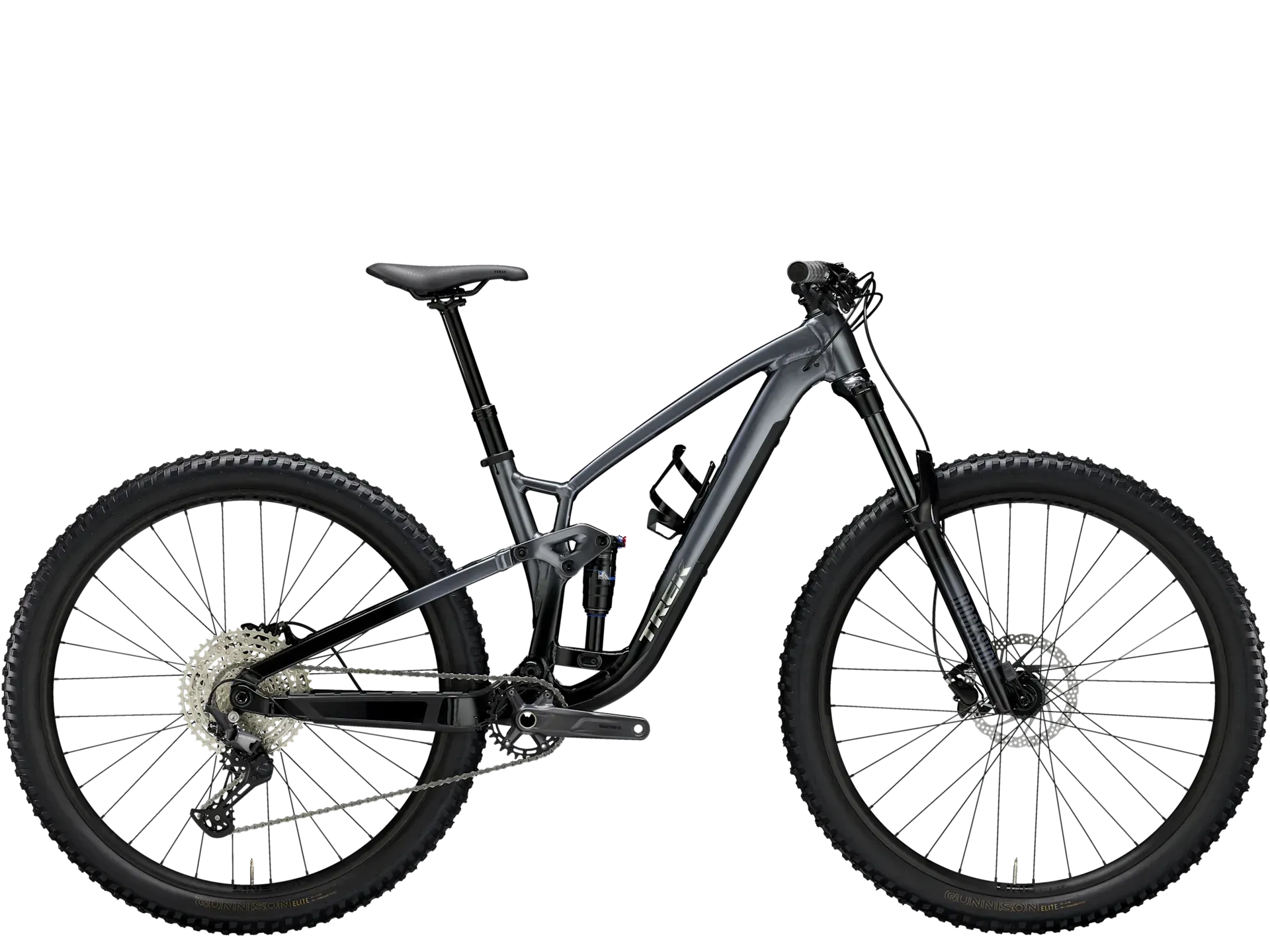

The Fuel EX 5 is a full-suspension trail bike that's ready to handle it all. With 150 mm front and 140 mm rear trail-taming suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.

Features

• Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.


• Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.


• Install angle-adjust headset cups (sold separately) to tweak the 64.5-degree head tube angle a degree steeper or slacker to your liking – all without impacting your bottom bracket height.


• Adjust the leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when you're hitting big features and don’t want to bottom-out, or when you want to run a coil shock.


• Shimano Deore brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff and the fun. With smooth riding, improved chain stability and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.

Specifications

• Intended Use- Trail
• Wheel Size- 27.5" / 29"
• Braking System- Hydraulic Disc
• Frame Material- Aluminum
• Fork Material- Aluminum

Components

• Frame- Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel


• Fork- Size- S RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 140 mm travel

  Size- M , ML , L RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel

  Size- M , ML RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel


• Bottom Bracket- Shimano BB-MT501 BSA


• Chain- Shimano Deore M6100, 12-speed


• Crank- Shimano MT512, 30T ring, 55 mm chain line, 170 mm length


• Shift Levers- Shimano Deore M6100, 12-speed


• Cassette- Shimano Deore M6100, 10-51, 12-speed


• Front Derailleur- NA


• Rear Derailleur- Shimano Deore M6100, long cage


• Grips/Bartape- Bontrager XR Trail Comp, nylon lock-on


• Handlebar- Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width


• Stem- Size- S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
  Size- M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length


• Saddle- Size- S , M , ML , L Bontrager Verse Short, stainless steel rails
  Size- L Bontrager Arvada, steel rails, 138 mm width


• Seatpost- Size- S TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
  Size- M , ML TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
  Size- L TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
• Front Brake- Shimano hydraulic disc, MT201 lever, MT200 caliper


• Rear Brake- Shimano hydraulic disc, MT201 lever, MT200 caliper


• Front Wheel- Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve


• Rear Wheel- Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, Bontrager Switch thru-axle, removable lever Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve


• Tire- Size- S Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"
  Size- M , ML , L Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"


• Pedal- NA


• Weight(Apprx)- M - 15.80 kg

Additional Info

• Country of Origin: China
• Imported By: Trek Bicycle India Pvt Ltd , Ground Floor , Unit 17 & 18 , Bestech Business Center , Badshahpur Sohna Rd Hwy , Sector 48c, Gurugram , Haryana - 122001 , India.
• Net Quantity: 1N
• Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: [email protected]
• Commodity: Bicycles
