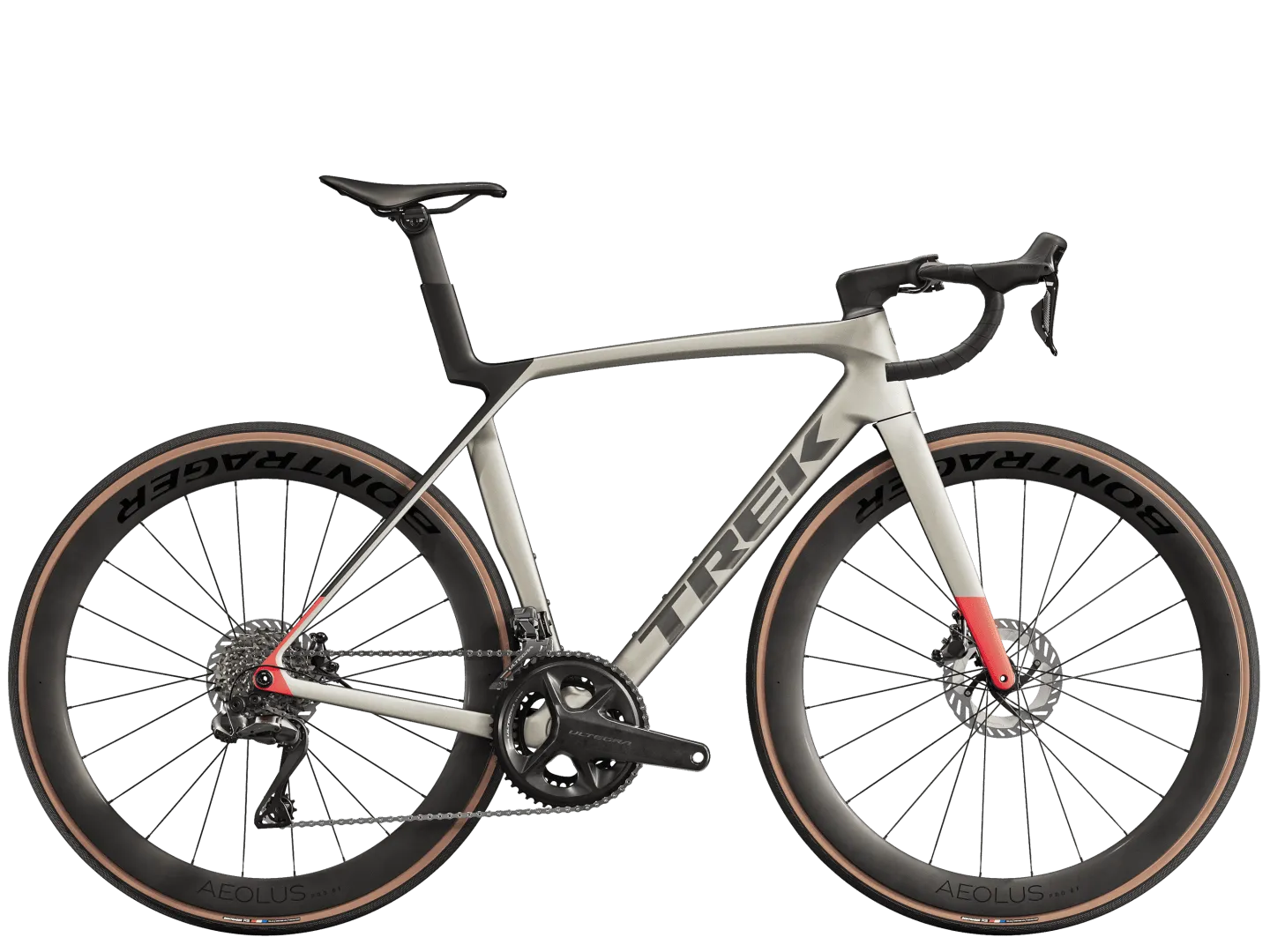

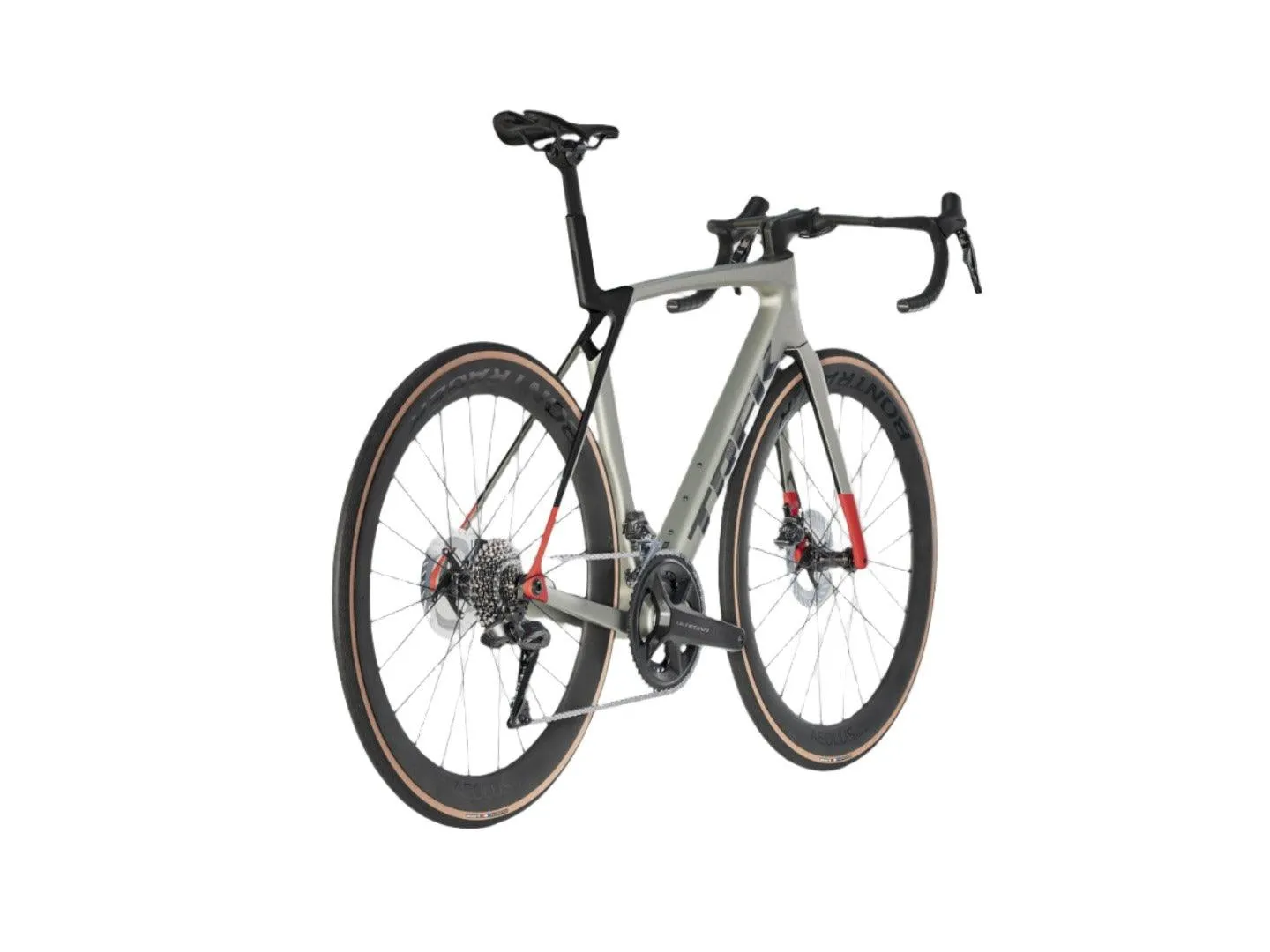

The Madone SL 7 Gen 8 is a race-ready road bike built to give you the best of every world. Its featherweight build lets you soar up climbs, while aero geometry cuts drag on descents and IsoFlow keeps you comfortable through the miles.

Features

• An ultra-light OCLV 500 Carbon frame with aero tubing and IsoFlow comfort technology
• A 2x12 Shimano Ultegra Di2 group set for lightning-fast shifting that's completely customizable
• It delivers the best balance of price and performance, with 500-Series OCLV carbon and upgraded parts that matter, like carbon wheels and electronic shifting.


Specifications

• Intended Use- Aero Race
• Wheel Size- 700c
• Braking System- Hydraulic Disc
• Frame Material- Carbon
• Fork Material- Carbon

Components

• Frame- 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle


• Fork- Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle


• Bottom Bracket- Praxis, T47 threaded, internal bearing


• Chain- Shimano Ultegra/XT M8100, 12-speed


• Crank- Size: S- Shimano Ultegra R8100, 50/34, 165 mm length / Size: M- Shimano Ultegra R8100, 50/34, 170 mm length / Size: ML, L- Shimano Ultegra R8100, 50/34, 172.5 mm length


• Shift Levers- Shimano Ultegra R8170 Di2, 12-speed


• Cassette- Shimano Ultegra R8101, 11-34, 12-speed


• Front Derailleur- Shimano Ultegra R8150 Di2, braze-on, down swing


• Rear Derailleur- Shimano Ultegra R8150 Di2, 34T max cog


• Handlebar- Size: S- Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width / Size: M, ML, L-
  Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 42 cm width


• Stem- Size: S, M- Trek RCS Pro, -7-degree, 90 mm length / Size: ML, L- Trek RCS Pro, -7-degree, 100 mm length


• Saddle- Size: S- Bontrager Aeolus P2 Elite, 155 mm width / Size: M, ML, L-Bontrager Aeolus Elite, austenite rails, 145 mm width


• Seatpost- Size: S, M- Madone aero carbon seat post, 0 mm offset, short length / Size: ML, L- Madone aero carbon seat post, 0 mm offset, long length


• Front Brake- Shimano CL800, CentreLock, 160 mm


• Rear Brake- Shimano CL800, CentreLock, 160 mm


• Front Wheel- Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle


• Rear Wheel- Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle


• Tire- Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm


• Weight(Apprx)- ML - 7.88 kg
