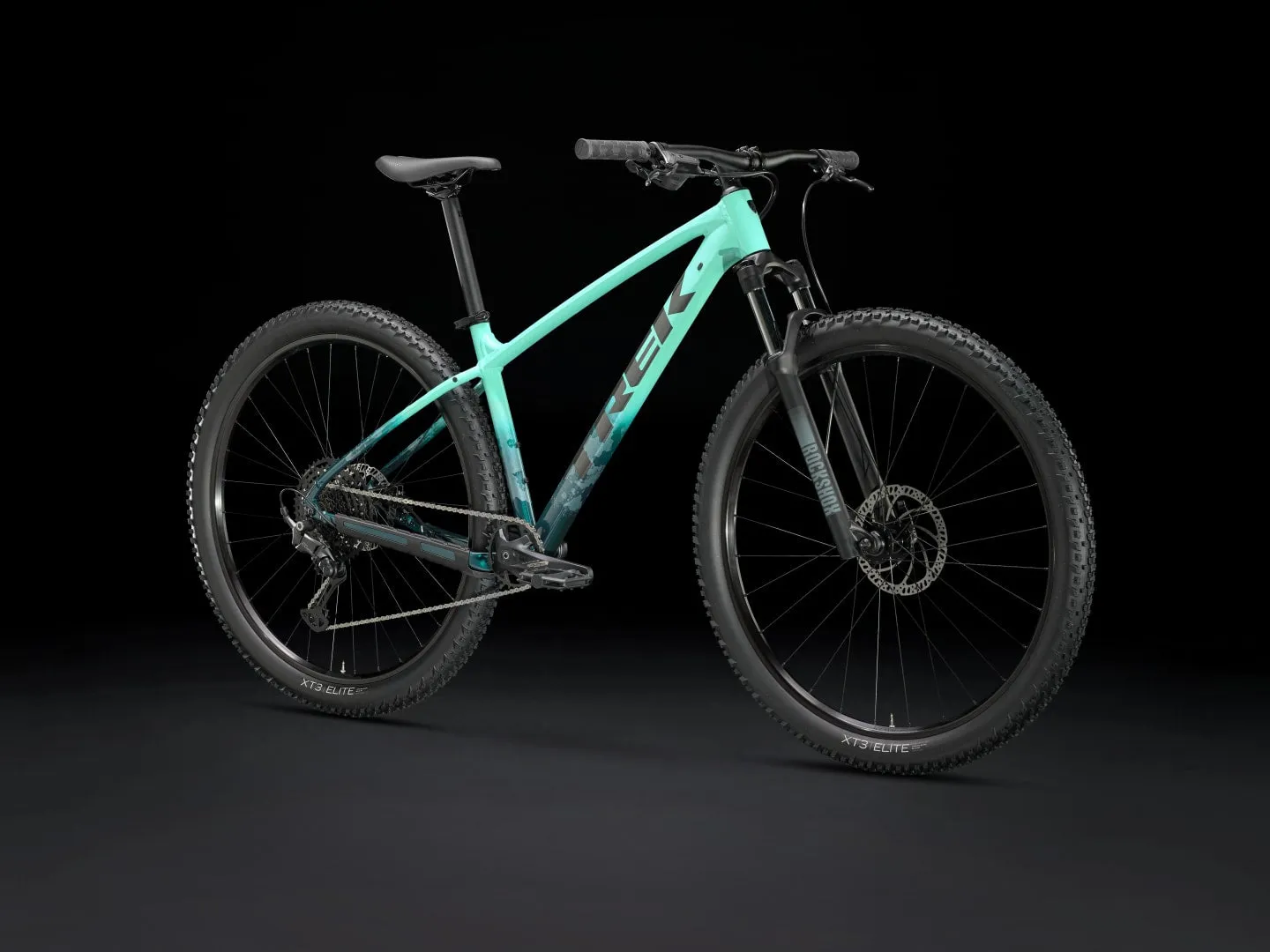

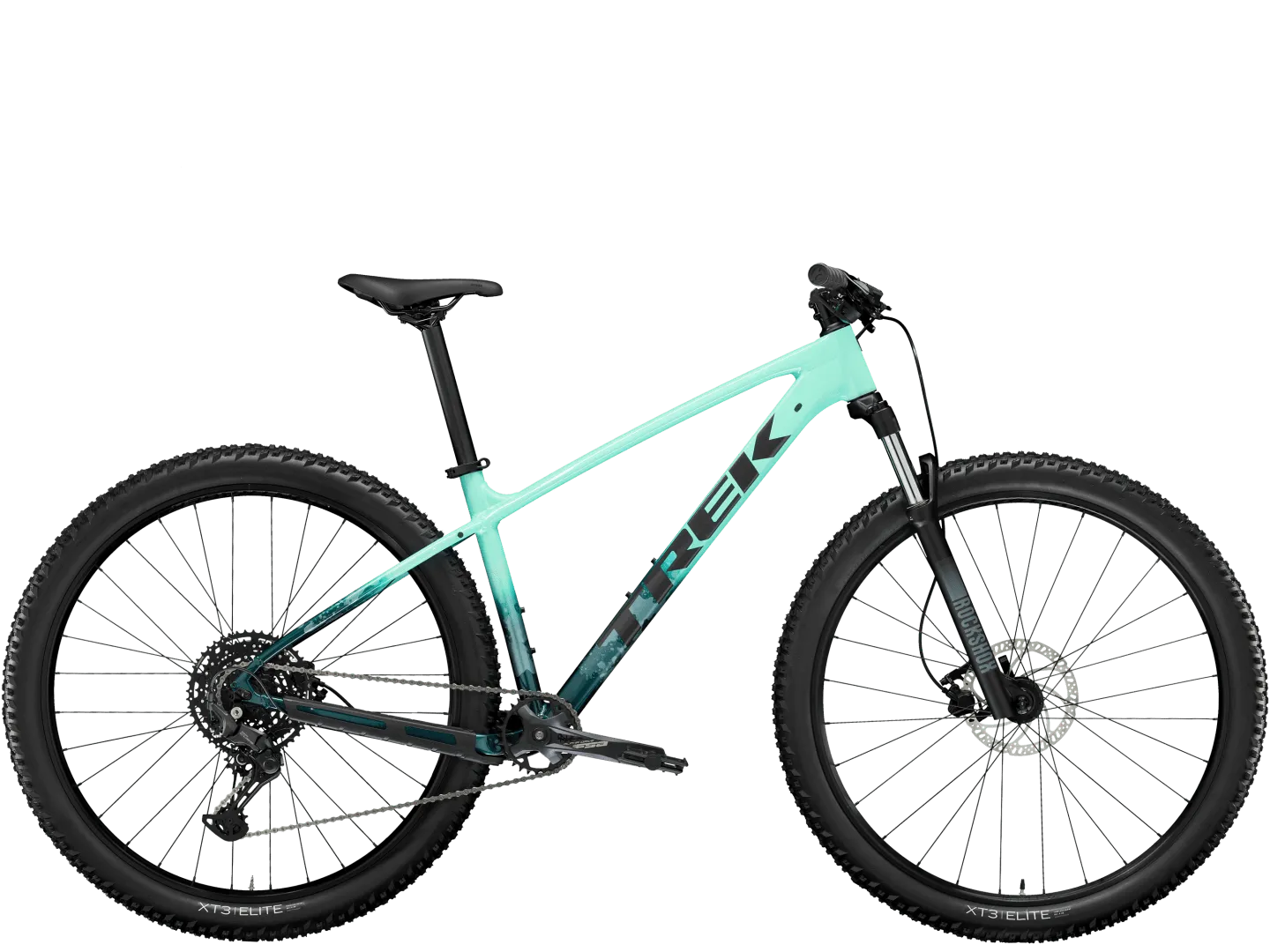

Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the upgraded suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

Features

• Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes.
• Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.
• Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits
• LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience.

Specifications

• Intended Use- Cross Country
• Wheel Size- 27.5" / 29"
• Braking System- Hydraulic Disc
• Frame Material- Aluminium
• Fork Material- Aluminium

Components

• Frame- Size: XXS , XS Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew Size: S , M , ML , L , XL , XXL Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew


• Fork- Size: XXS RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel Size: XS , S RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel Size: M , ML , L , XL , XXL RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel


• Bottom Bracket- FSA, 73mm, threaded cartridge, 122.5mm spindle


• Chain- Shimano LG500, 9/10/11 speed


• Crank- Size: XXS , XS FSA Alpha Drive, 30T, 160mm length Size: S , M , ML FSA Alpha Drive, 30T, 170mm length Size: L , XL , XXL FSA Alpha Drive, 30T, 175mm length


• Shift Levers- Shimano U6000, 10 speed


• Cassette- Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed


• Rear Derailleur- Shimano CUES U6000 GS


• Grips/Bartape- Bontrager XR Trail Comp, nylon lock-on


• Handlebar- Size: XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width Size: S Bontrager alloy, 31.8mm, 15mm rise, 720mm width Size: M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 15mm rise, 750mm width


• Stem- Size: XXS , XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm length Size: M , ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length Size: XXL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length


• Saddle- Bontrager Verse Short, stainless steel rails


• Seatpost- Size: XXS Bontrager alloy, 31.6mm, 12mm offset, 300mm length Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length

• Front Brake- Size: XXS , XS , S Tektro HD-M276 hydraulic disc, short reach Size: M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc


• Rear Brake- Size: XXS , XS , S Tektro HD-M276 hydraulic disc, short reach Size: M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc


• Front Wheel- Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve, Formula DC-20, alloy, 6-bolt, 100mm ThruSkew


• Rear Wheel- Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve, Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR


• Tire- Size: XXS Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26x2.35'' Size: XS , S Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.35'' Size: XS , S Maxxis IKON, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.35'' Size: M , ML , L , XL , XXL Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.35'' Size: M , ML , L , XL Maxxis IKON, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.35''


• Pedal- VP-536 nylon platform


• Weight(Apprx)- M - 14.50 kg
